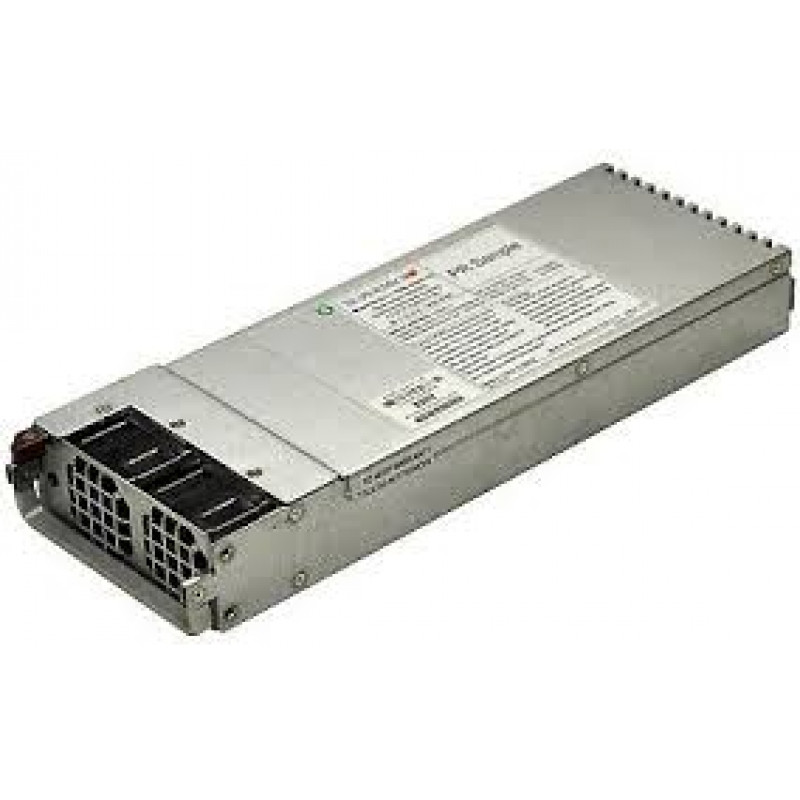

Fuente de poder Supermicro PWS-1K43F-1R
- Fabricante: Supermicro
- Modelo: PWS-1K43F-1R
- Disponibilidad: In Stock
$7700.00
- Sin IVA: $7700.00
| Total Power Output | 1200W / 1400W |
|---|---|
| Type | Single |
| Type of Power Supply | AC-DC |
| Form Factor | 1U |
| Dimension (W x H x L) | 298 x 40.4 x 104.5 mm |
| +5V | N/A |
| +12V | 1200W: 100A, 1400W: 117A |
| +3.3V | N/A |
| 5V Standby | 6.0A |
| Input Voltage Range | 1200W: 100-140Vac, 1400W: 180-240Vac |
| Input Frequency Range | 50-60Hz |
| Input Current Range | 100-140Vac: 14.7-10.5A, 180-240Vac: 10.5-8.0A |
| Output Type | Gold Finger |
| 8Pin / 4Pin (12V) Connector | N/A |
| PFC | Yes |
| Voltage / Current | Yes |
| Energy Efficiency | Typical 94%+ @ 230Vac |
| 80 Plus Certification | 80 Plus Platinum |
| Validated Systems | SYS-1017GR-TF, SYS-1018GR-T, SYS-1019GP-TT, SYS-5017GR-TF, SYS-5018GR-T, SYS-5019GP-TT, SYS-8027R-7RFT+, SYS-8027R-TRF+, SYS-8028B-C0R3FT, SYS-8028B-C0R4FT, SYS-8028B-TR3F, SYS-8028B-TR4F, SYS-8048B-C0R3FT, SYS-8048B-C0R4FT, SYS-8048B-TR3F, SYS-8048B-TR4F |
| Validated Chassis | CSE-748TQ-R1K43B, CSE-828TQ-R1K43LPB |
| Warranty | 1 year warranty |
| Product Environmental Compliance | RoHS and REACH compliant, details available upon request |
