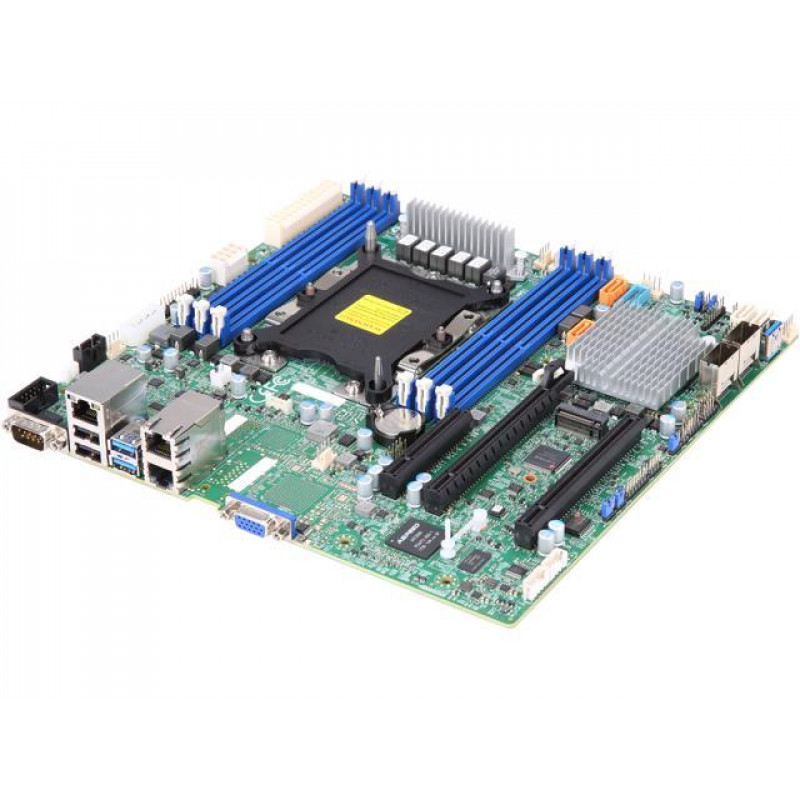

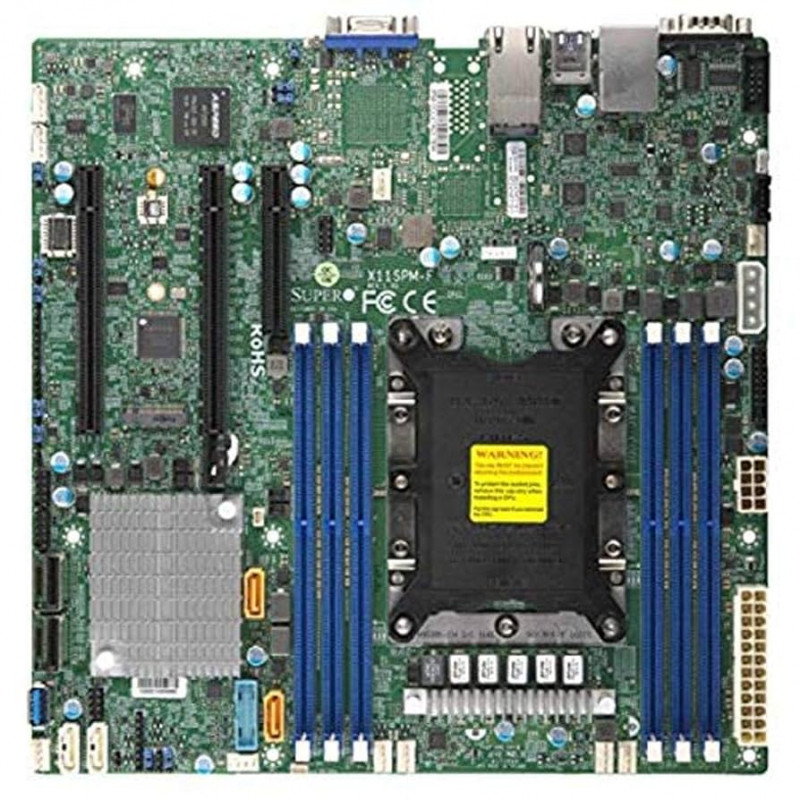

Motherboard X11SPM-F-0

Supports 12V DC power input
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP
Intel® C621 Chipset
- Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
- Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
Expansion slots: 2 PCIe 3.0 x16, 1 PCIe 3.0 x8 (in x8)
- M.2 NGFF connector
- M.2 Interface: PCIe 3.0 x4
- Form Factor: 2242, 2280

Product SKUs
MBD-X11SPM-F

Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Core	Up to 28 cores
Note	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity	6 DIMM slots Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 32GB, 64GB, 128GB RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel® C621
SATA	Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512

Input / Output
SATA	12 SATA3 (6Gbps) port(s)
LAN	2 1GbE LAN ports
Video Output	1 VGA port(s)
Serial Port	1 COM 1 COM
DOM	2 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header

$8550.00
